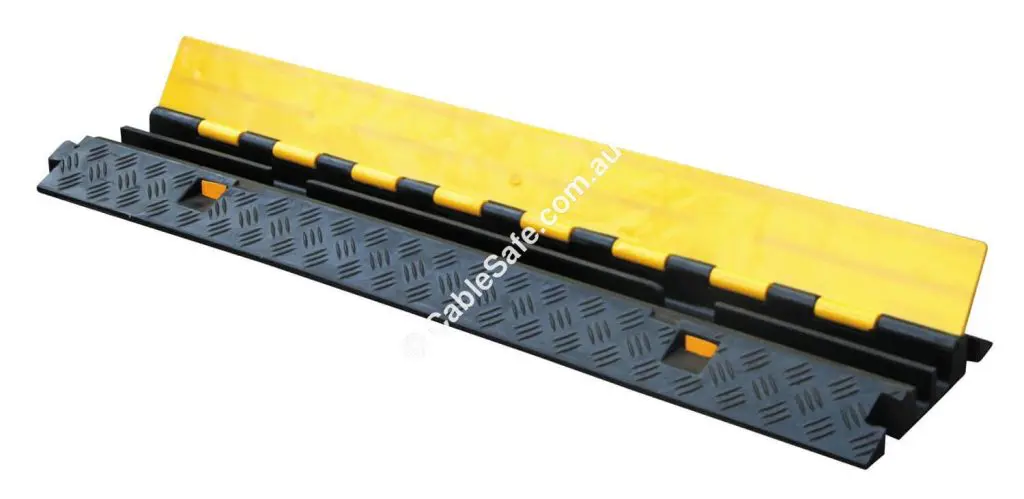

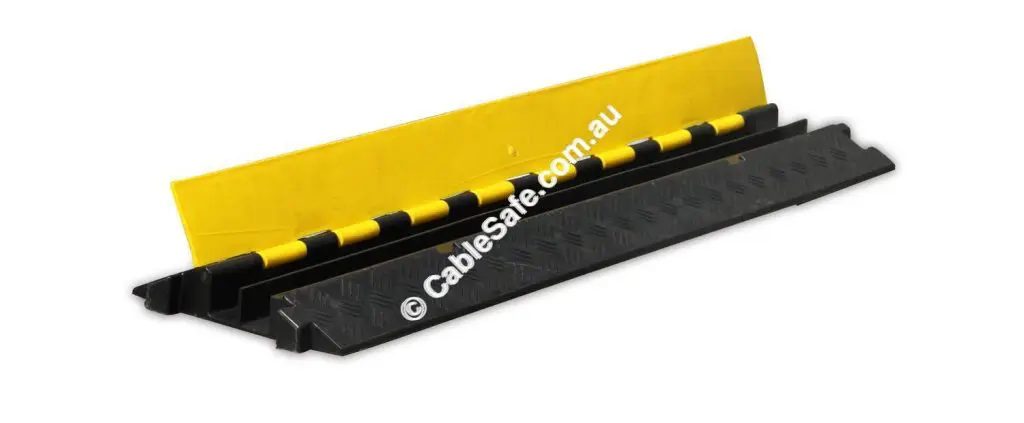

2 Channel Cable Protector
Compact Cable Management: Introducing our 2 Channel Cable Protector for Heavy Duty Applications
Our Immensely popular 2 Channel Cable Covers are now available in 3 materials. Check the matrix below to find the model perfect for Your Application
CS-02i
CS-02iPUL

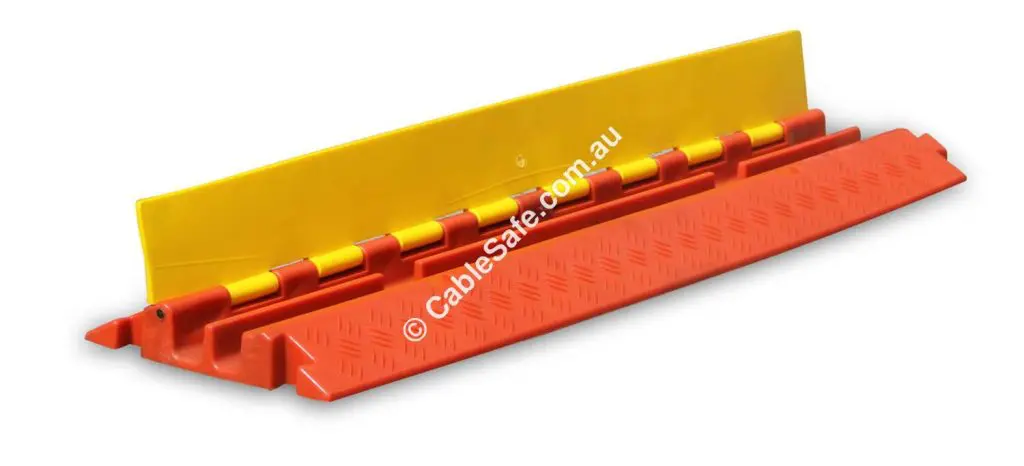

CS-02iPU
| CS-02i | CS-02iPUL | CS-02iPU | |
| Dimensions | 1000mm(L) x 250mm(W) x 45mm(H) | 1000mm(L) x 250mm(W) x 45mm(H) | 1000mm(L) x 250mm(W) x 45mm(H) |
| Channel size | 2 x 30mm (W) x 35mm (H) | 2 x 30mm (W) x 35mm (H) | 2 x 30mm (W) x 35mm (H) |
| Weight (KG) | 7.5 | 4 | 5 |
| Base Material | Rubber | Thermoplastic Polyurethane | Polyurethane |
| Flap Material | PVC | PVC | PVC |
| Locking Flap | No | No | No |
| Weight Loading* (KG) | 3,100 | 4,000 | 6,000 |
| Laboratory Fail Load* (KG) | 3,600 | 6,100 | 9,400 |
| Warranty | 1 Year | 2 Years | 2 Years |
| Colour | Black/Yellow | Black/Yellow | Orange/Yellow |
* NATA Laboratory Tested Load per TYRE for 5 Minutes in Excess of Australian Standards
·
Features & Benefits
- Interlocking male and female connectors allow multiple cable guards to be joined together quickly, creating continuous cable protection for longer runs.
- Patented 5-bar tread surface provides enhanced grip for pedestrians and vehicle traffic.
- Integrated carry handles make transporting and positioning each section quick and convenient.
- Hinged lid design allows cables and hoses to be added, removed, or changed with minimal disruption.
- UV-stabilised materials help maintain performance and durability in outdoor environments.
- Low-profile design helps reduce trip hazards while providing effective protection for cables and hoses.
- Available in multiple material options to suit different operating environments and application requirements.
- Designed for commercial, industrial, construction, event, and public environments where reliable cable protection is essential.
- Ideal for Electric Vehicle (EV) Charging Cables (subject to council approval)
Refer to the product specifications above to determine the most suitable model for your application.
