Prevent costly cable damage and create a safer worksite with Australia’s trusted heavy-duty cable protection systems.
CS-05i
CS-05iPUL
CS-05iPU
CS-05i
CS-05iPUL
CS-05iPU
Dimensions (mm)
900(L) x 500(W)x 50(H)
900(L) x 500(W)x 50(H)
900(L) x 500(W)x 50(H)
Channel Size
4 Channels @ 34mm (W) x 36mm (H) and 1 Centre Channel 40mm(W) x 36mm(H)
4 Channels @ 34mm (W) x 36mm (H) and 1 Centre Channel 40mm(W) x 36mm(H)
4 Channels @ 34mm (W) x 36mm (H) and 1 Centre Channel 40mm(W) x 36mm(H)
Weight (KG)
15.5
8
9.8
Base Material
Rubber
Thermoplastic Polyurethane
Polyurethane
Flap Material
PVC
PVC
PVC
Locking Flap
No
Yes
No
Weight Loading* (KG)
4,600
6,000
10,000
Laboratory Fail Load* (KG)
7,700
11,000
13,000
Warranty
1 Year
2 Years
2 Years
Colour
Black/Yellow
Black/Yellow
Orange/Yellow or Black/ Yellow
* NATA Laboratory Tested Load per TYRE for 5 Minutes in Excess of Australian Standards
All Models:
5-Channel Cable Protectors – Choose the Right Model
Three Heavy-Duty Options. One Practical Cable Protection Solution.
Choosing the right cable protector isn’t just about the number of channels.
The CS-05i, CS-05iPUL and CS-05iPU all provide five-channel
cable protection, but their different materials, weights and load
characteristics make each model suited to different worksite requirements.
Whether your priority is traditional rubber construction, reduced
handling weight or maximum listed load capacity, CableSafe has a
5-channel solution to suit your application.

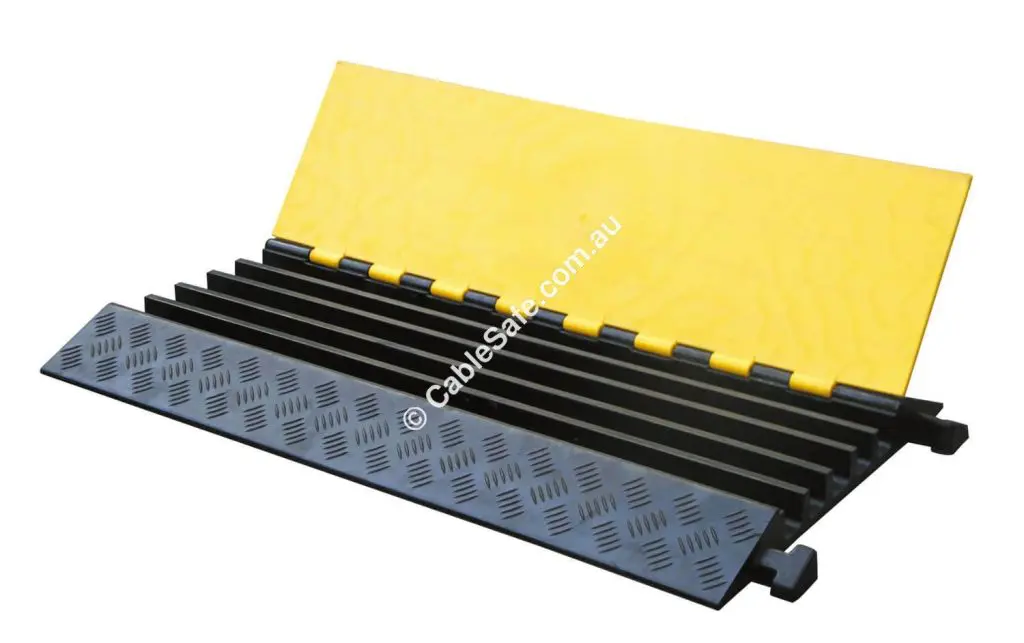

Proven Rubber Construction for Demanding Worksites
The CS-05i is the traditional heavy-duty rubber option
in the CableSafe 5-channel range.
At 15.5kg per 900mm section, it provides a substantial
and robust cable protection solution for construction, infrastructure,
utilities, power and other demanding worksite applications.
Key Benefits
Heavy-duty rubber construction
Five cable or hose channels
4,600kg weight loading per tyre*
7,700kg laboratory fail load*
900mm modular sections
Patented five-bar tread surface
Built-in carry handles
Male/female interconnection system
1-year warranty
Why Choose the CS-05i?
Choose the CS-05i when you prefer a
traditional rubber cable protector and the additional
weight of a rubber construction is not a concern.

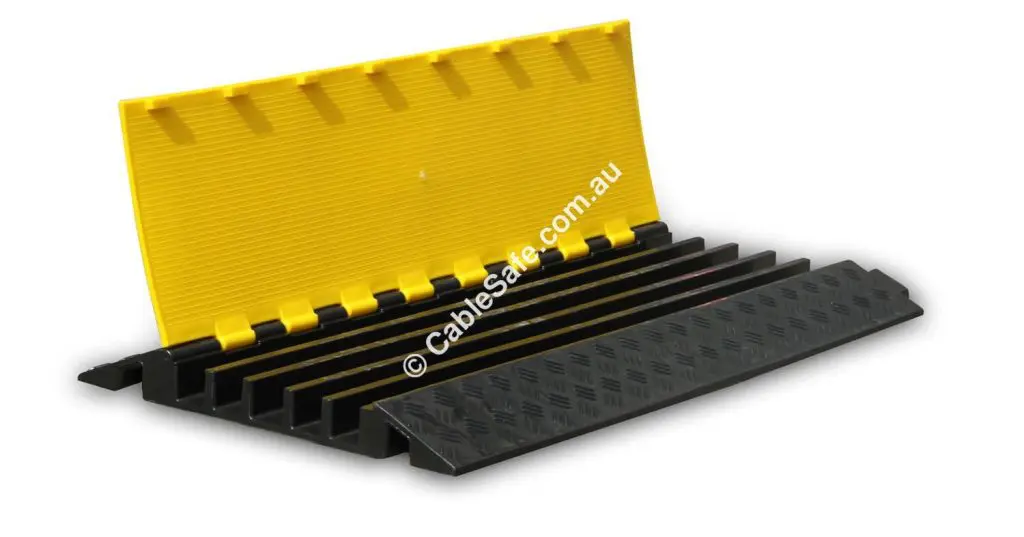

The CS-05iPUL combines thermoplastic polyurethane
construction with a practical locking flap to deliver a significantly
lighter alternative to traditional rubber cable protection.
At just 8kg per 900mm section, it is the lightest model
in the CableSafe 5-channel range – making it easier to transport,
position and reposition on site.
The locking flap also provides convenient access when
cables and hoses need to be installed, removed or changed.
Key Benefits
Thermoplastic polyurethane construction
Only 8kg per 900mm section
Locking flap for cable access
Five cable/hose channels
6,000kg weight loading per tyre*
11,000kg laboratory fail load*
2-year warranty
Built-in carry handles
Male/female interconnection system
Why Choose the CS-05iPUL?
Choose the CS-05iPUL when
easy handling, reduced product weight and convenient cable access
are important.
It is particularly attractive for applications where cable protectors
need to be regularly moved, installed or repositioned.
Buying in Quantity?
Need 20m, 50m or more of cable protection?
Ask CableSafe about project pricing and freight.

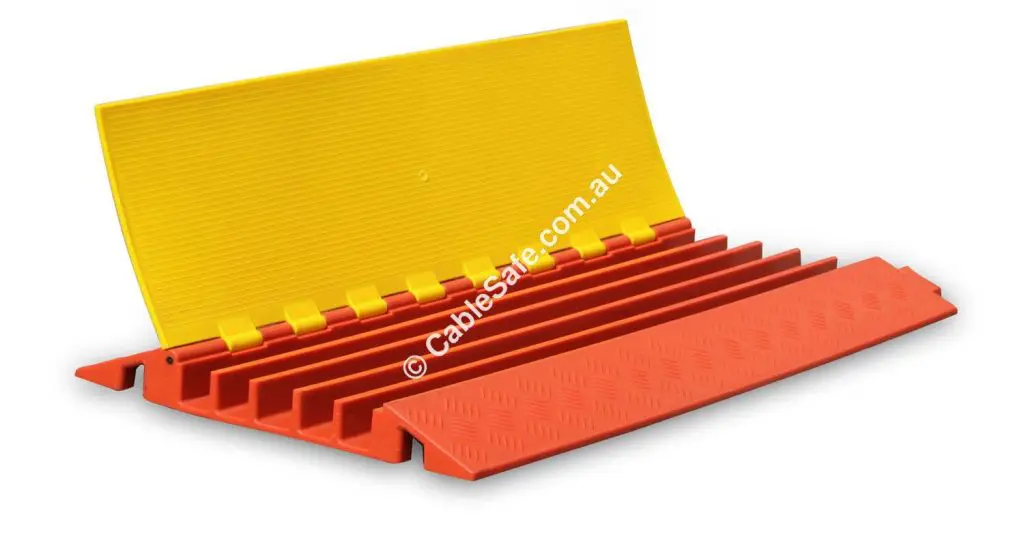

CS-05iPU – Lightweight Polyurethane with High Load Capacity
Lightweight Construction with the Highest Listed Load Rating in the Range
The CS-05iPU combines polyurethane construction with a
9.8kg section weight and the highest listed load capacity
of the three CableSafe 5-channel models.
With a listed 10,000kg weight loading per tyre* and
13,000kg laboratory fail load*, it provides a lightweight
solution for applications where load capacity is a major consideration.
Key Benefits
Polyurethane construction
9.8kg per 900mm section
Five cable/hose channels
10,000kg weight loading per tyre*
13,000kg laboratory fail load*
2-year warranty
Built-in carry handles
Male/female interconnection system
Available in orange/yellow or black/yellow
Why Choose the CS-05iPU?
Choose the CS-05iPU when you want the combination of
polyurethane construction, relatively low handling weight and
the highest listed load capacity in the CableSafe 5-channel range.
The CableSafe Heavy Duty Cable Protector is engineered to protect electrical cables and hoses in demanding commercial, industrial, construction, mining, infrastructure and event environments. Designed for both pedestrian and vehicle traffic, it combines durability, ease of installation and practical cable management in one robust solution.
Key Features & Benefits
Interlocking Cable Guard System
Male and female connectors allow multiple cable protectors to be joined together quickly, creating continuous cable protection for longer cable runs.
Patented 5-Bar Anti-Slip Tread
The patented tread pattern provides enhanced traction for pedestrians, forklifts, trolleys and vehicle traffic while helping maintain stability in high-traffic environments.
Integrated Carry Handles
Built-in handles make transporting, positioning and installing each cable protector quicker and easier.
Hinged Lid for Fast Cable Access
Easily add, remove or replace electrical cables and hoses without lifting or dismantling the cable protector.
UV Stabilised Construction
Manufactured from UV-stabilised materials to help provide long service life in outdoor environments exposed to sunlight.
Low Profile Cable Protector
The low-profile design helps reduce trip hazards while allowing pedestrians, trolleys and vehicles to pass smoothly over protected cables.
Designed for Maximum Cable Capacity
CableSafe cable protectors are designed to maximise usable internal channel space, allowing more electrical cables and hoses to be protected without increasing the overall footprint. This helps improve installation efficiency where multiple services need to cross pedestrian or vehicle access points.
Designed for Easier Handling
Weighing approximately 18.5kg per unit, this model is lighter than many comparable heavy-duty cable protectors while still delivering the strength required for demanding applications. Reduced weight can make transportation and installation more manageable.
Compact Footprint
With a true overall width of approximately 500mm, the CableSafe design provides generous internal cable capacity while occupying less walkway or roadway space than many comparable products.
Typical Applications
Construction Sites
Industrial Facilities
Warehouses & Distribution Centres
Mining & Infrastructure Projects
Events & Entertainment Venues
Commercial Buildings
Factories & Manufacturing Plants
Public Spaces
Temporary & Permanent Cable Installations
Frequently Asked Questions
What is a heavy-duty cable protector used for?
Heavy-duty cable protectors are used to protect electrical cables and hoses where they cross pedestrian walkways, roads, warehouses, construction sites and industrial workplaces. They also help reduce trip hazards and protect cables from damage caused by vehicle traffic.
Where can CableSafe cable protectors be used?
CableSafe cable protectors are suitable for commercial, industrial, construction, mining, infrastructure, event and public environments where reliable cable protection is required.Browse Our Product Range or
Contact the CableSafe Team
for practical advice on selecting the right cable protection solution for your application.“`
