Small 3 Channel Cable Guards
Compact Cable Management: Introducing our Small 3 Channel Cable Guards
New to CableSafe! Our new Small 3 Channel Cable Guards are Here! Perfect for those jobs where 2 channels is not enough and 5 channels is too many. This niche product is low profile, extremely tough and ideal for any application where cables or hoses need to cross pedestrian and /or vehicle traffic. Now manufactured in 3 different materials. please compare below to find the model appropriate for your Application

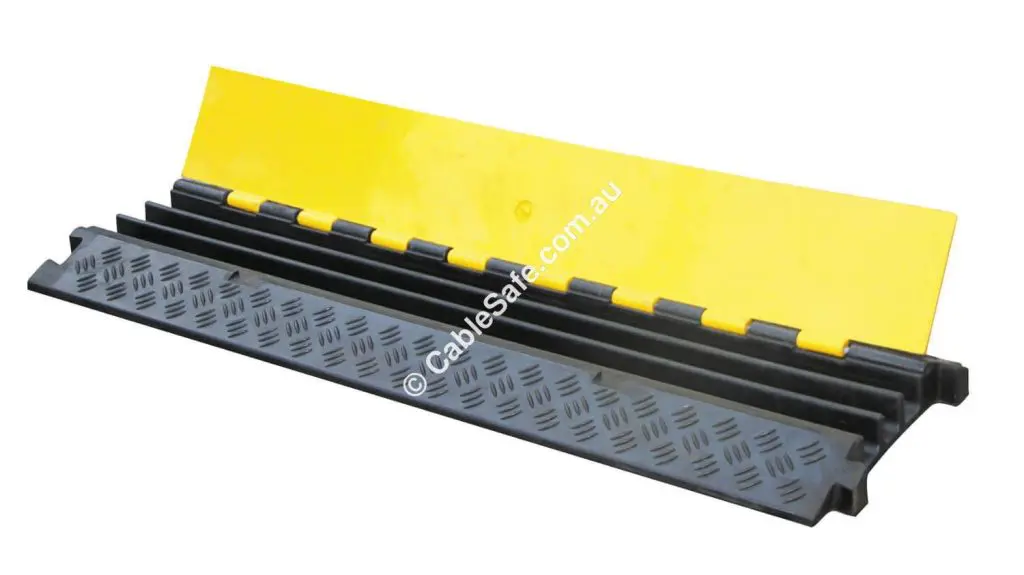

CS-10i
CS-10iPUL

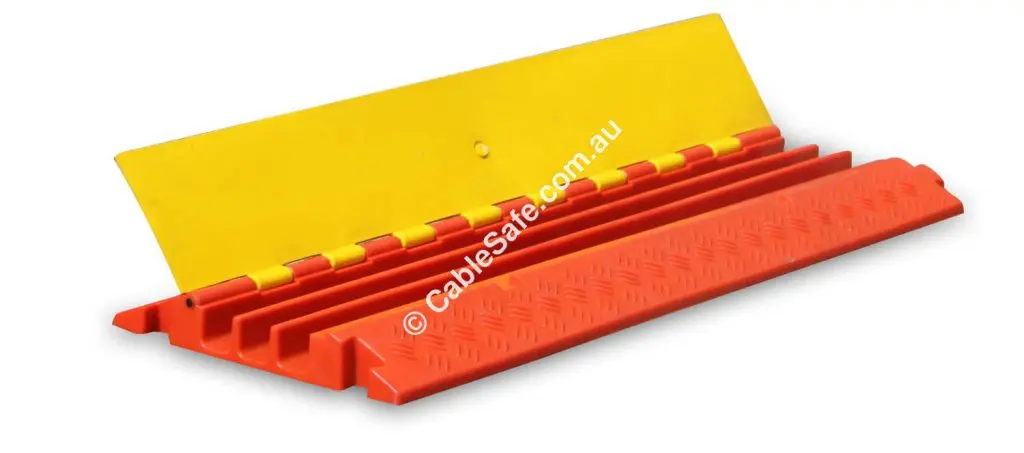

CS-10iPU
| CS-10i | CS-10iPUL | CS-10iPU | |
| Dimensions | 900mm (L) x 300mm (W) x 45mm(H) | 900mm (L) x 300mm (W) x 45mm(H) | 900mm (L) x 300mm (W) x 45mm(H) |
| Channel Size | 3 x 30mm(W) x 35mm(H) | 3 x 30mm(W) x 35mm(H) | 3 x 30mm(W) x 35mm(H) |
| Weight (KG) | 8 | 5 | 5.5 |
| Base Material | Rubber | Thermoplastic Polyurethane | Polyurethane |
| Flap Material | PVC | PVC | PVC |
| Locking Flap | No | No | No |
| Weight Loading* (KG) | 5,000 | 8,000 | 10,000 |
| Laboratory Fail Load* (KG) | 10,600 | 13,100 | 13,800 |
| Warranty | 1 Year | 2 Years | 2 Years |
| Colour | Black/Yellow | Black/Yellow | Orange/Yellow |
* NATA Laboratory Tested Load per TYRE for 5 Minutes in Excess of Australian Standards
All Models:
- Male/Female interconnect system allows any length to be formed quickly and easily
- Different types of same model will connect together
- Non-Conductive
- Patented 5 bar tread surface provides maximum traction.
- Inbuilt carry handle makes it easier to carry one unit in each hand.
- Uses hinged lid to make adding/changing cable/hose very quick and easy
- Very low profile design decreases trip risk significantly compared to other higher profile products.
- Non conductive-no metal parts
- UV Stabilised for long service life outdoors
- Flap easily replaced in less than 2 minutes
- Universally recognised safety symbols on flap
