Large 3 Channel Cable Protectors
Heavy Duty Cable Guard Range
Heavy-Duty Cable Management: Introducing our Large 3 Channel Cable Protectors and Cable Guards
Our new large 3 channel cable protectors are here! This niche product is low profile, extremely tough and ideal for any application where cables or hoses need to cross pedestrian and /or vehicle traffic. View our 3 versions below to find the model appropriate for your application or explore other options at Cablesafe.
CS-01i
CS-01iPUL
CS-01iPU
| CS-01i |
CS-01iPUL | CS-01iPU | |
| Dimensions (mm) | 900(L) x 500(W)x 70(H) | 900(L) x 500(W)x 70(H) | 900(L) x 500(W)x 70(H) |
| Channel Size | 3 x 60mm(W) x 65mm(H) |
3 x 60mm(W) x 65mm(H) | 3 x 60mm(W) x 65mm(H) |
| Weight (KG) | 18.5 | 11 | 13 |
| Base Material | Rubber | Thermoplastic Polyurethane | Polyurethane |
| Flap Material | PVC | PVC | PVC |
| Locking Flap | No | Yes | No |
| Weight Loading* (KG) | 6,100 | 6,000 | 7,000 |
| Laboratory Fail Load* (KG) | 8,300 | 8,300 | 11,000 |
| Warranty | 1 Year | 2 Years | 2 Years |
| Colour | Black/Yellow | Black/Yellow | Orange/Yellow or Black/ Yellow |
* NATA Laboratory Tested Load per TYRE for 5 Minutes in Excess of Australian Standards

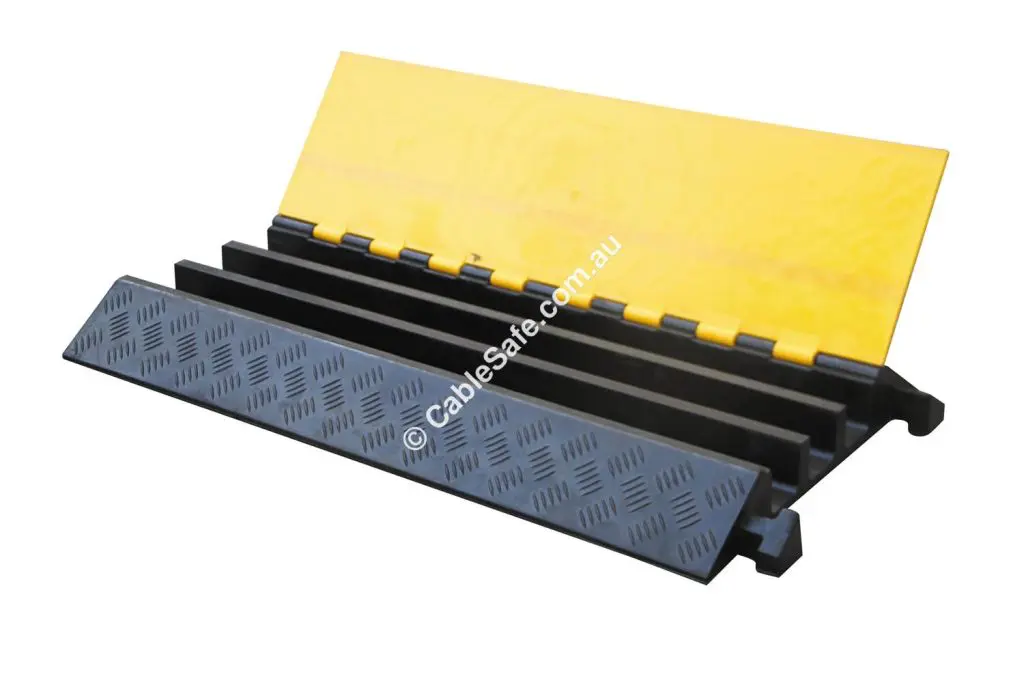

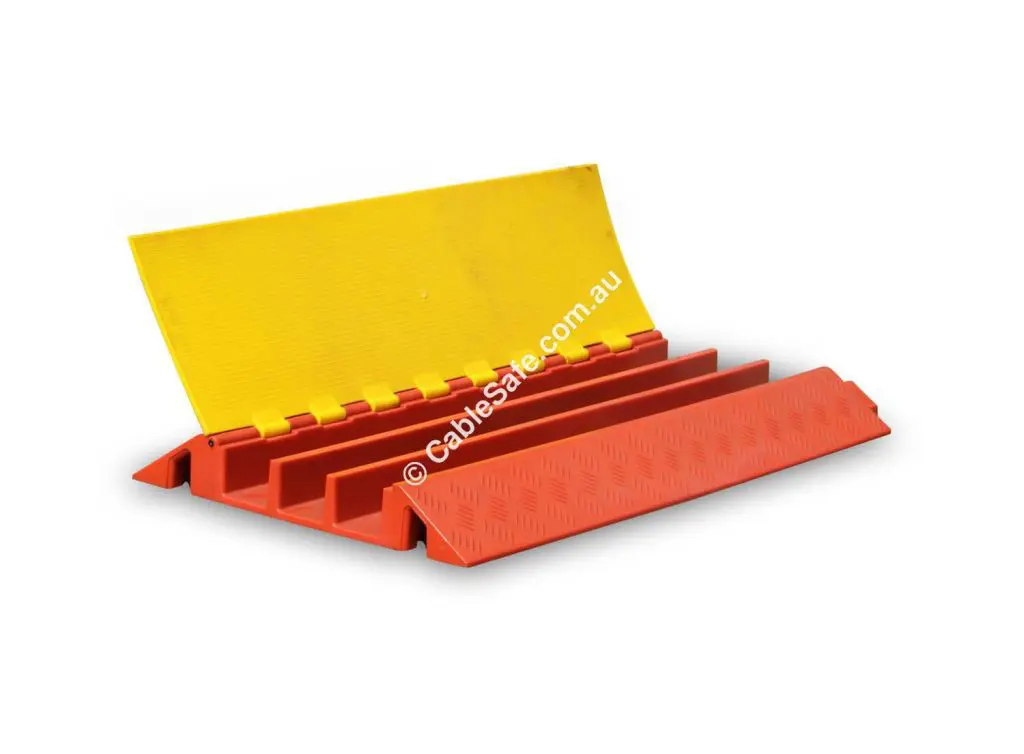

3 Channel Cable Protector – Heavy Duty Cable Protection for Pedestrian & Vehicle Traffic
The CableSafe 3 Channel Cable Protector is designed to protect electrical cables and hoses in commercial, industrial, construction, infrastructure and event environments. Built for pedestrian and vehicle traffic, it combines a compact footprint with generous cable capacity, making it an ideal solution where durability, safety and efficient cable management are essential.
Key Features & Benefits
- Interlocking Male & Female Connectors
Quickly connect multiple cable protectors together to create continuous cable protection for longer cable runs. - Patented 5-Bar Tread Surface
Provides enhanced traction for pedestrians, trolleys, forklifts and vehicle traffic. - Integrated Carry Handles
Designed for easier handling, transportation and installation. - Hinged Lid Design
Allows cables and hoses to be added, removed or changed quickly without dismantling the installation. - UV Stabilised Materials
Suitable for long-term outdoor use where resistance to UV exposure is important. - Low Profile Design
Helps reduce trip hazards while providing effective protection for electrical cables and hoses.
Designed to Carry More
Larger internal channels provide increased usable space for cables and hoses compared with many cable protectors of a similar overall size. This allows more services to be protected without increasing the installation footprint.
Lighter Weight. Easier Handling.
Weighing approximately 18.5kg per unit, the CableSafe 3 Channel Cable Protector is lighter than many comparable products, making transportation and installation easier while still delivering heavy-duty performance.
Compact Footprint
With a true overall width of approximately 500mm, the CableSafe design maximises internal channel capacity while occupying less space than many comparable cable protectors. This makes it well suited to areas where maintaining clear pedestrian or vehicle access is important.
Typical Applications
- Construction Sites
- Industrial Facilities
- Warehouses & Distribution Centres
- Mining & Infrastructure Projects
- Events & Entertainment Venues
- Commercial Buildings
- Public Spaces
- Factories & Manufacturing Facilities
- Temporary & Permanent Installations
Why Choose CableSafe?
Trusted in cable protection since 2007, CableSafe combines manufacturing expertise, practical industry experience and independently tested products to help customers select the right cable protection solution for their application.
Browse Our Product Range or Contact the CableSafe Team
for practical advice on selecting the most suitable cable protector for your project.
| Feature | CableSafe 3 Channel | Typical Comparable Product |
|---|---|---|
| Weight | 18.5 kg | Often 24 kg+* |
| Overall Width | 500 mm | Often around 600 mm* |
| Internal Channel Capacity | Optimised | Varies |
| Interlocking Design | ✓ | Varies |
| Hinged Lid | ✓ | Varies |
*Based on published specifications of selected comparable products. Always verify current specifications before comparison.
